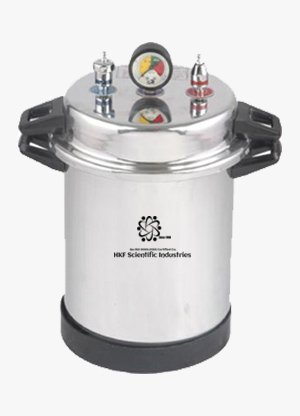

Portable Autoclave (Cooker Type)

Pressure Cooker Type Portable Autoclave is low cost device for general sterilization ideal for doctors, nursing homes, laboratories, dentists etc.
Mainly used as general laboratory equipment where samples in small batches are required to be sterilized.

Unbeatable combination of quality, performance and value.
Easily operate anywhere, anytime.
Light weight & easy to carry.
Available Electrically / Gas Heated, Single walled, (joint less body) complete with Stand in Aluminum deep drawn Seamless construction & Stainless Steel Models.
Stylish, Light, Compact, Portable Easy to use top loading autoclaves.
Fast 25 min. Sterilizing cycle at 1210 C.
Hydraulically tested up to 40 psi for user safety.
Spring loaded safety valve for pressure adjustment and a dead weight valve works as a safety device.
Lid is fitted with pressure gauge, safety valve and manual exhaust valve.
Vacuum breaker-cum-purge valve works as a safety device.
Lid Closing by Press & Turn System.
Moulded neoprene rubber gasket.
Extended life Lid Gasket and Heating Element.
Pressure Gauge show internal chamber condition during the cycle.

Model No.	APC – 1	APC – 2	APC – 3	APC – 4
Hight * Dia	275 x 225 mm	300 x 300 mm	350 x 300 mm	550 x 300 mm
Capacity	10 ltr	21 ltr	24 ltr	39 ltr
Heat Load	1.5 KW	1.5 KW	2.0 KW	3.0 KW
Gasket (Joint less)	Neoprene
Chamber Wall	Single Walled (Seamless)
Exhaust of pressure	Manually through aexhaust valve
Pressure Gauge	0-2.1 kgf/cm² (30 psi)
Sterilizing Pressure	0-2.1 kgf/cm² (15 psi) at 121°C.
Hydraulically Tested	Up to 40 psi
Pressure Vessel	Aluminum / Stainless Steel (SS-304)
Power Supply	220/230V AC, 50/60 Hz
