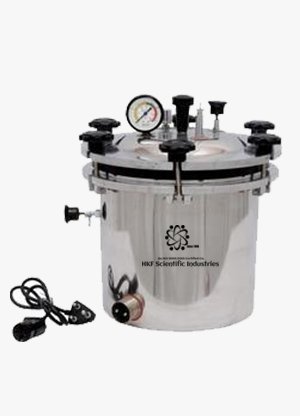

Portable Autoclave

Portable Autoclave is low cost device for general sterilization ideal for doctors, nursing homes, laboratories, dentists etc.
Mainly used as general laboratory equipment where samples in small batches are required to be sterilized.
Light weight & easy to carry.

Available Electrically / Gas Heated, Single walled, (joint less body) complete with Stand in Aluminum & Stainless Steel Models.
Hydraulically tested upto 40 psi for user safety.
Spring loaded safety valve for pressure adjustment and a dead weight valve works as a safety device.
Wing Type Simple and easy “Press & turn” system of closing lid for single walled units.
Lid is fitted with pressure gauge, safety valve and manual exhaust valve.
Vacuum breaker-cum-purge valve works as a safety device.
Moulded neoprene rubber gasket.

Internal Dimension (Dia x Height)	300 x 300 mm
Gasket (Jointless)	Neoprene
Heat Load	2.0 KW
Chamber Wall	Single
Exhaust of Pressure	Manually through aexhaust valve
Pressure Gauge	0-2.1 kgf/cm² (30 psi)
Sterilizing Pressure	0-2.1 kgf/cm² (15 psi) at 121°C.
Pressure Vessel	Aluminum / Stainless Steel (SS-304)
Power Supply	220/230V AC, 50/60 Hz
